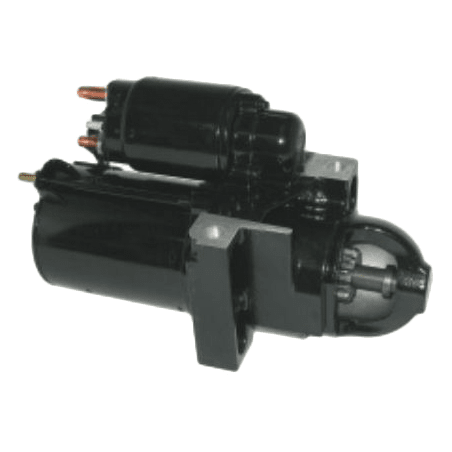

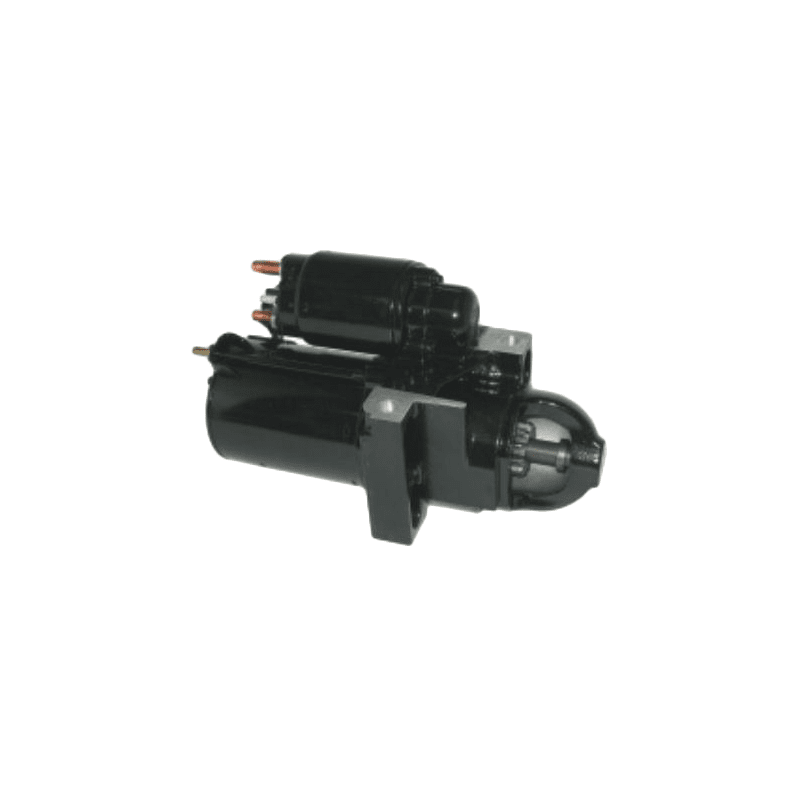

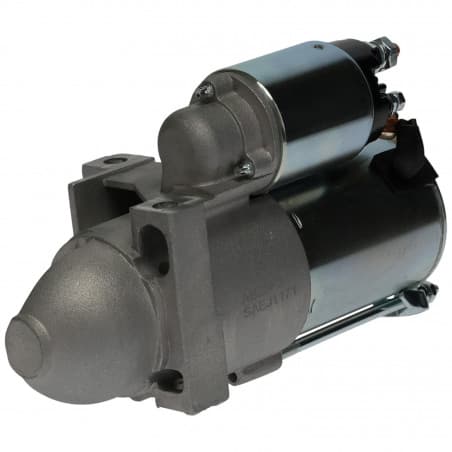

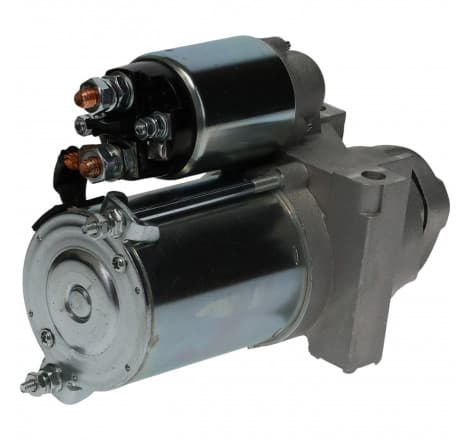

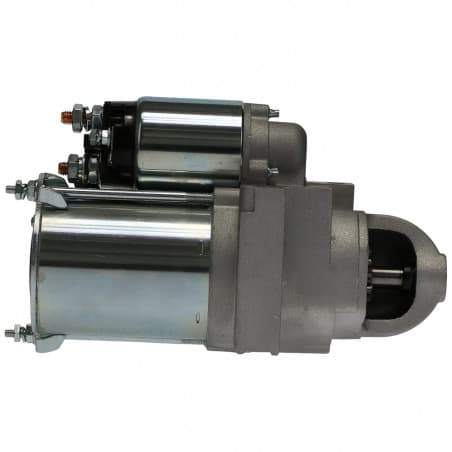

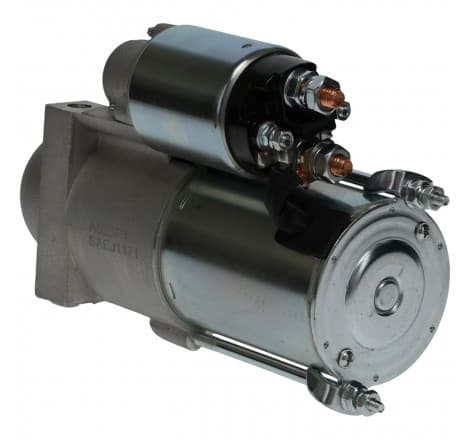

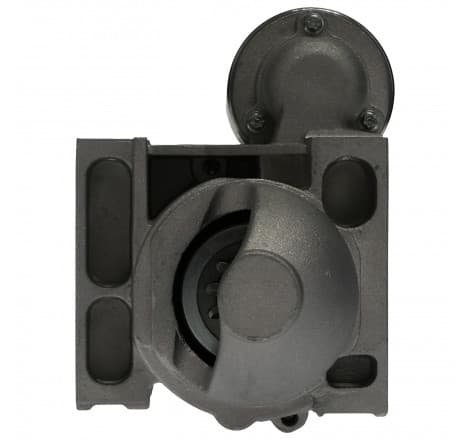

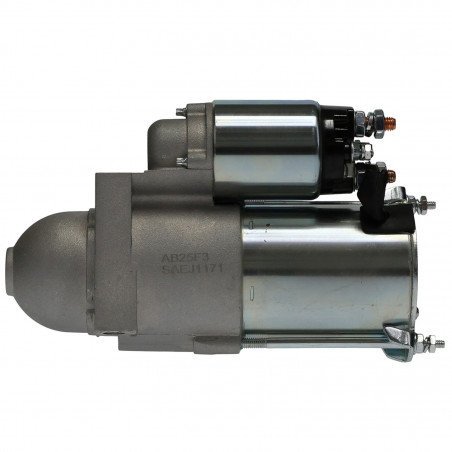

12 Volt
1.4 KW Permanent Magnet
Gear Reduction Starter
Latest Version to Replace
Late Merc Engines
Delco #:
9000884, 8000108,
Use on 3.0L, 4.3L, 5.0L
with Offset Bolt Pattern.
CW Rotation

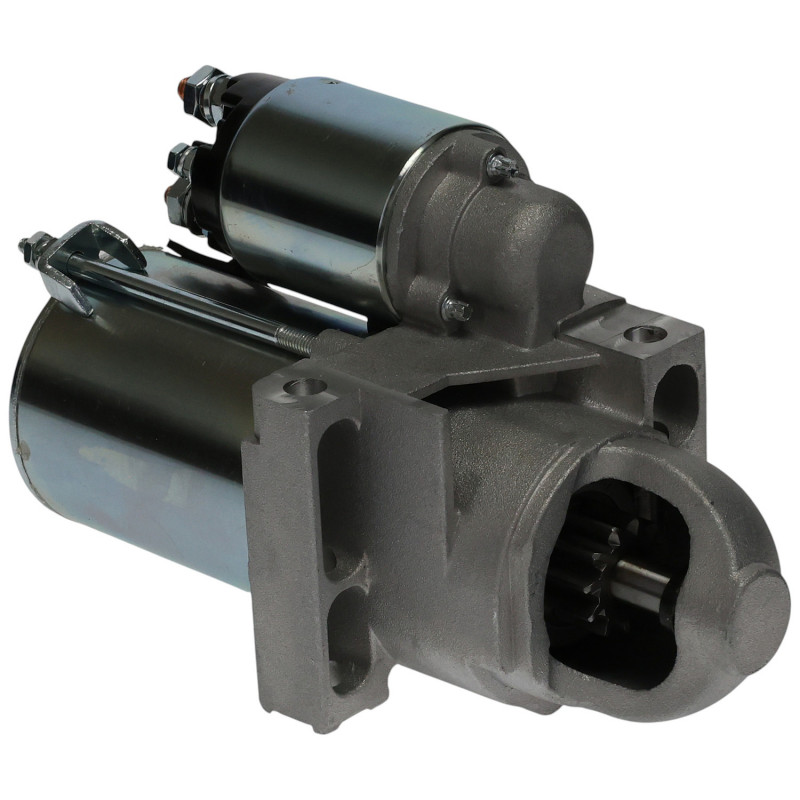

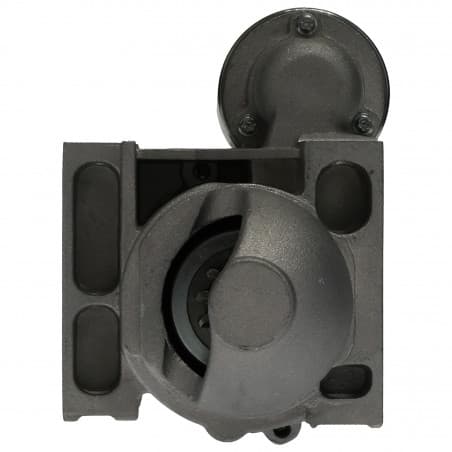

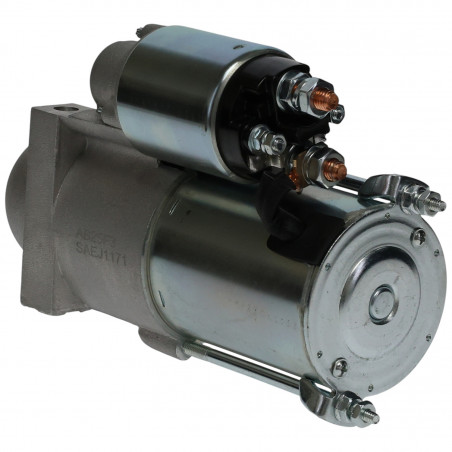

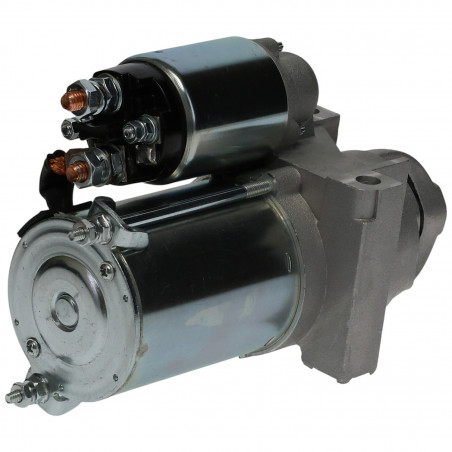

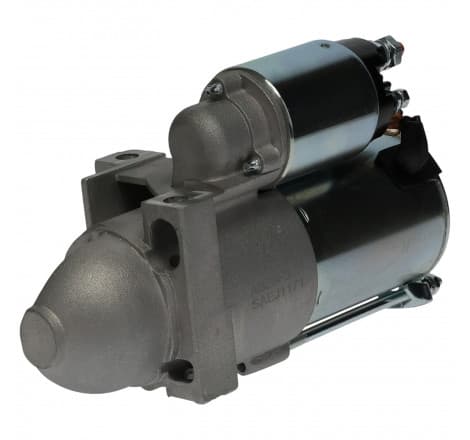

Starter
• 1.4kW/12 Volt, CW, 11-Tooth Pinion
• Delco PG260G PMGR
• 100% New
• OE performance torque & output
• Notes - 4-terminal solenoid,Replaces Delco PG260F1 Starters: 9000839, 840 w/ 9-tooth drive,SAE J1171 Marine Certified
• Replaces - Mercruiser 863007A1, Mercury Marine 50-863007A1
Specifications
- MFR:DELCO
- Mfr Series:PG260G
- DESIGN:PMGR
- FEATURE 1:100% New
- FEATURE 2:OE performance torque & output
- FEATURE 3:Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position
- FEATURE 4:Zinc plated field case, solenoid, C.E. cover & hardware
- FEATURE 5:Armatures are precision balanced & feature banded hairpins
- FEATURE 6:Commutators are stake-welded & polished for longer brush life
- FEATURE 7:Carbon brushes are welded - same as OE
- FEATURE 8:All component parts are OE interchangeable
- FEATURE 9:Starter, drive & solenoid are endurance tested
- KW:1.4
- NOTE 1:4-terminal solenoid
- NOTE 2:Replaces Delco PG260F1 Starters: 9000839, 840 w/ 9-tooth drive
- NOTE 3:SAE J1171 Marine Certified
- ROTATION:CW
- SPECS FOR:Delco PG260G PMGR
- SPECS:1.4kW/12 Volt, CW, 11-Tooth Pinion
- TEETH:11
- VOLTAGE:12
Replaces
- Delco 8000282, 8000598, 9000839, 9000840, 9000884, Hyster 4093283, HY4093283, Mercruiser 863007A1, Mercury Marine 50-807904A1, 50-863007A1, Original Reference Number 33001753, Outboard Marine Corp (OMC) 3860566, Prestolite 20513529TBA, Volvo-Penta 3660566-3, 3857747, 3860566, 3860566-3, 3885317
USED ON
- Hyster (1998-2009) ** Mercruiser (1995-2009) ** Volvo Penta (1994-2007)
