Bulkhead mounted waste

VETUS spildevandstank skotmonteret 25 l

2.985,00 kr
Inkl. moms


Udsolgt, kontakt kundeservice

Skotmonteret tank type WW - Let tømning uden pumpe

Disse tanke er lavet af syntetisk materiale, der er uigennemtrængeligt for lugt og gennemsigtigt, så tankniveauet kan ses udefra. Fås i 4 størrelser, horisontale samt vertikale og velegnet til montering under ringdæk, over vandlinjen. Tankene leveres med inspektionsdæksel og studse. Hullet til indløbsstuds RT..B er allerede leveret. Studsene skal bestilles separat.

Tekniske data

• Tankene er i overensstemmelse med ISO 8099 standard

• Tankkapacitet 25 liter

• Sugerør med Ø 38 mm vinkelstuds for tilslutning til dæksgennemføring

• Vinkelstuds Ø 38 mm for tømning til havs

• Vinkelstuds Ø 19 mm for tankventilation

Reference
VWW25W
Antal
udsolgt, kommer igen

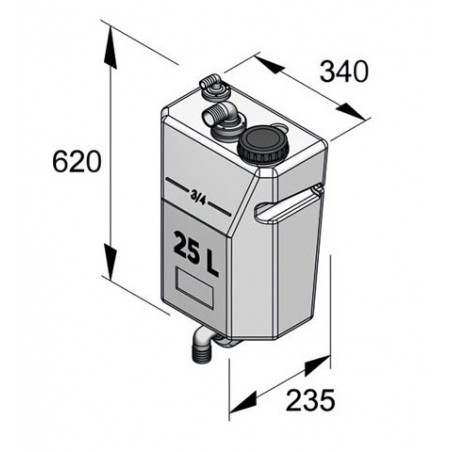

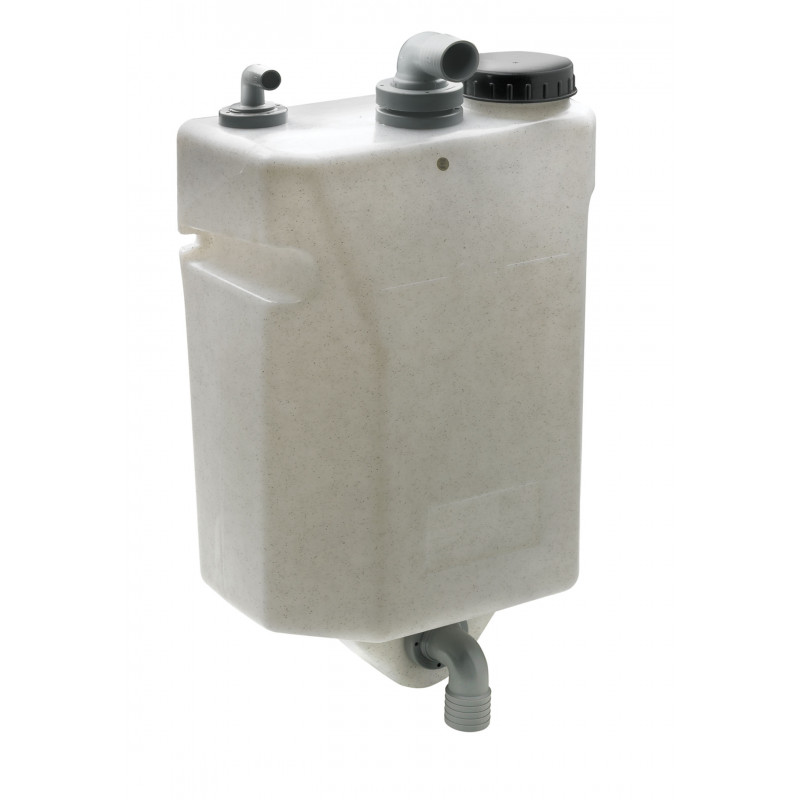

VETUS bulkhead mounting tank for fitting in confined spaces - or where an underfloor situation is impractical. The tank has a capacity of 25 litres and is made of seamless, odour impermeable polythene. The contents level can be seen from outside.Suitable for both “black” and “grey” water. It comes complete with the following components installed:Suction pipe with Ø 38 mm angled hose connector, for connection to deck plateAngled hose connector, Ø 38 mm, for dischargeInspection coverAngled hose connector, Ø 19 mm, for tank ventilation (breather)

Angled inlet connectors can be ordered separately. One hole has already been provided, to connect the inlet fitting. The tank is suitable for mounting under the side decks, above the waterline. When permitted, the contents of the tank can be gravity discharged at sea, without the assistance of a pump. Simply opening the sea cock will empty the tank. Provided with ISO 8099 identification.

VWW25W
Ean13
8717372288715
