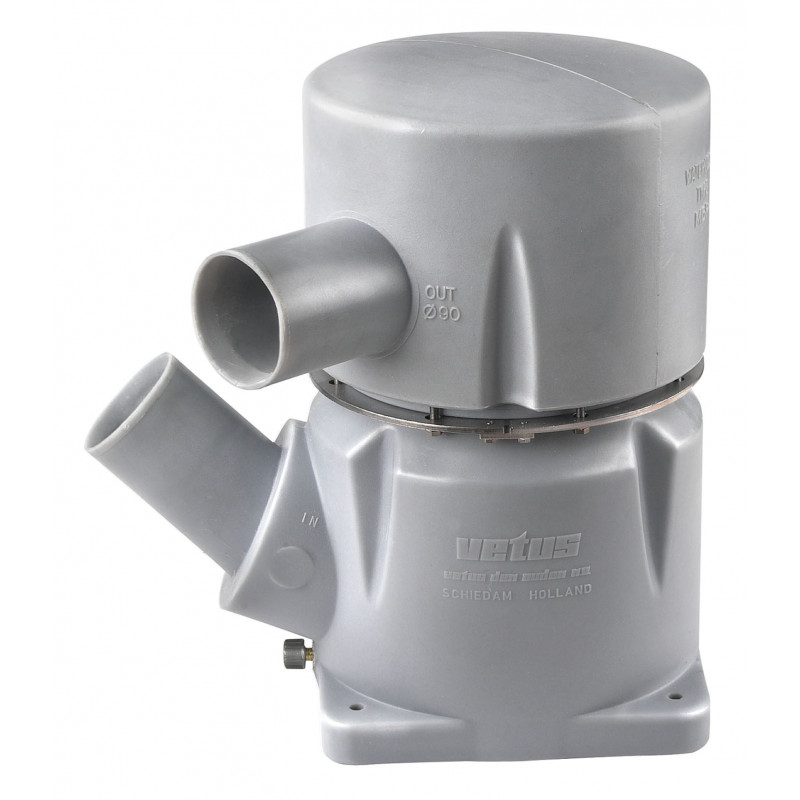

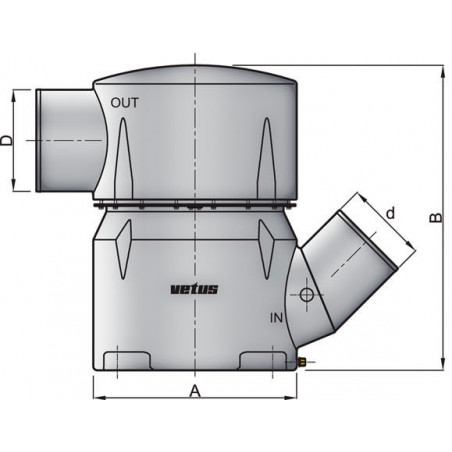

VETUS waterlock type MGS, inlet 5 inch-45 degrees, outlet 6 inch

This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360º and the inlet connection is at an angle of 45º upward. Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.

SpecificationsExcellent sound reductionMinimal back pressureDrain valve for winter storageSuitable for Ø 90, 102, 127, 152, 209 or 250 mm internal hose diametersCapacities of 23, 75 or 130 litresComes with stainless steel (AISI 316) clamp bands
