Fuel tank
  • Fuel tank
  • Fuel tank

Tanktilslutningssæt 51/08 til faste tanke

VFTL5108B
1.164,00 kr. Inkl. moms
Leveringstid 1 - 5 dage
The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel.
Antal
På lager

E-Mærket

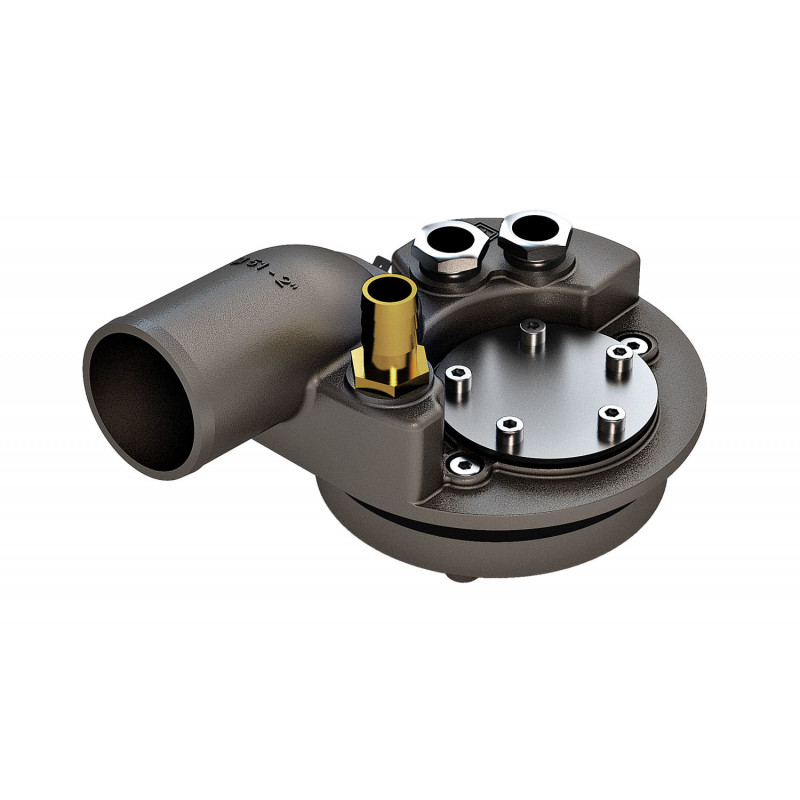

This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just3 bolts compressing the rubber seal to ensure a perfect seal. The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank. This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks.

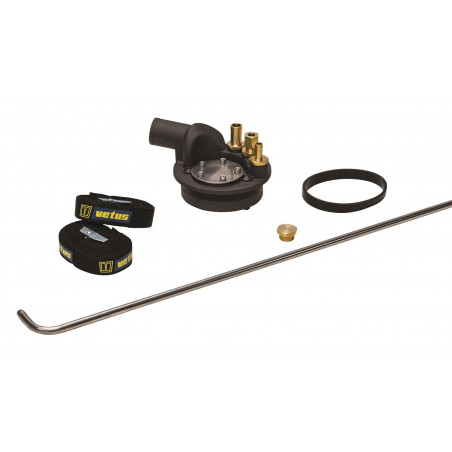

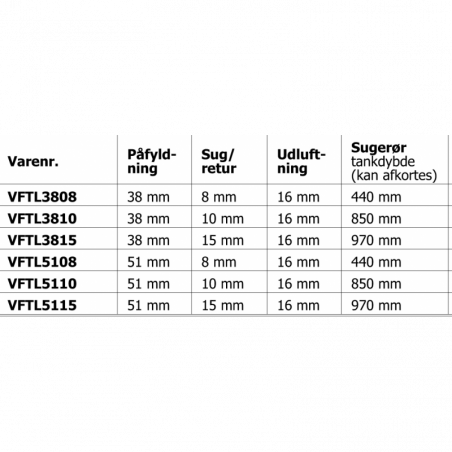

The following connections are supplied Hose connection for filling Ø 38 or 51 mm and a 16 mm tank ventilation connectionFuel suction pipe according to model selected Ø8 mm, max. tank depth 440 mmØ10 mm, max. tank depth 850 mmØ15mm, max. tank depth 970 mm Fuel return for Ø8, 10, 15 mm hoseMounting flange for tank level sensors (connection is suitable for sensors with a 5-hole SAE flange)Terminal tag 6,3 mm for ground wire2 Mounting straps to secure tank
